2,000 Lb. Cap. SB Model Portable Aluminum Gantry Cranes

SB Model Portable Aluminum Gantry Crane

While most aluminum gantries on the market have only 30″ of height adjustment, this little gantry has a impressive 36 3/8″. From 65 3/8″ in it’s lowest position to 102″ in it’s highest. That’s a lot of adjustment for its size. This is achieved by height adjustments made from both the bases and the I Beam top caps. (See Chart Below) With 16 different height adjustments, we believe the Small Base model is the most versatile roll while loaded gantry on the market today. Add a 6″ I-beam and you have the ability to have OAH’s of just under 6′, 7′, 8′ and 9′.  This should accommodate the ceiling heights for most medical, utility or lab rooms etc.   With this design it is possible to offset the gantry with hole spacing’s at 4 7/8″ and 5 7/8″ for 5 and 6 inch curbs. By adjusting multiple holes, you can achieve in excess of 24 + more height offsets for a total of more than 40 combinations. Its truly a service person’s dream.

Standard Portable Aluminum Gantry Crane Features:
  • 2,000 lb. cap.

  • Lightweight 6061 T6 structural aluminum construction

  • Adjustable leg widths

  • 4-position locking polyurethane casters at 90 degrees

Optional Portable Aluminum Gantry Crane Features:
  • Optional caster brakes

  • Optional casters styles (Steel wheels, V track, Etc.)

  • Optional custom size I-beam lengths

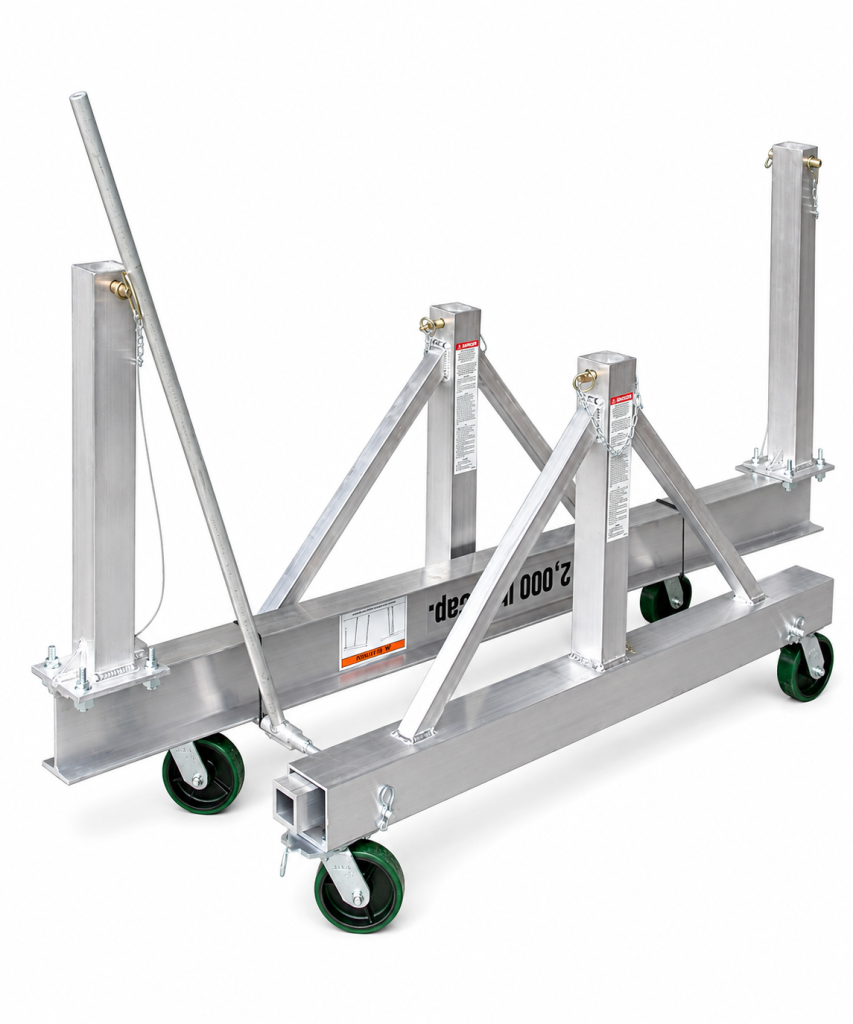

  • Optional cart assembly available in all models

  • Optional hoists, trolleys and custom slings

This particular gantry model (2PSB) has a base width of only 48″. Therefore, its maximum height can only be 102″ Height Under Beam.  2PSB model aluminum gantries were, by design, primarily for use by service/maintenance personnel where their work space is more restricted.

2,000 lb. cap. SB Model Portable Aluminum Gantry Cranes

SKU Price Capacity (Lbs) Overall Span Span Between Wheels Clearance Span Max Height Under Beam Min Height Under Beam i-beam Depth Wheel Tread Caster Dia. Est. Weight (Lbs)
2PSB69 $1,810.00
2000 6' 5'3'' 5'1'' 8'6'' 5' 5.5'' 6'' 3'7'' 6'' 144
2PSB89 $1,920.00
2000 8' 7'3'' 7'1'' 8'6'' 5' 5.5'' 6'' 3'7'' 6'' 153
2PSB109 $2,150.00
2000 10' 9'3'' 9'1'' 8'6'' 5' 5.5'' 6'' 3'7'' 6'' 170
2PSB129 $2,210.00
2000 12' 10'3'' 11'1'' 8'6'' 5' 5.5'' 8'' 3'7'' 6'' 194
2PSB159 $2,850.00
2000 15' 14'3'' 14'1'' 8'6'' 5' 5.5'' 10'' 3'7'' 6'' 250
